IP65 RGBWAUV LED Pixel Bar Light
LED Bars

EL-LED BAR1861 IP Pixel

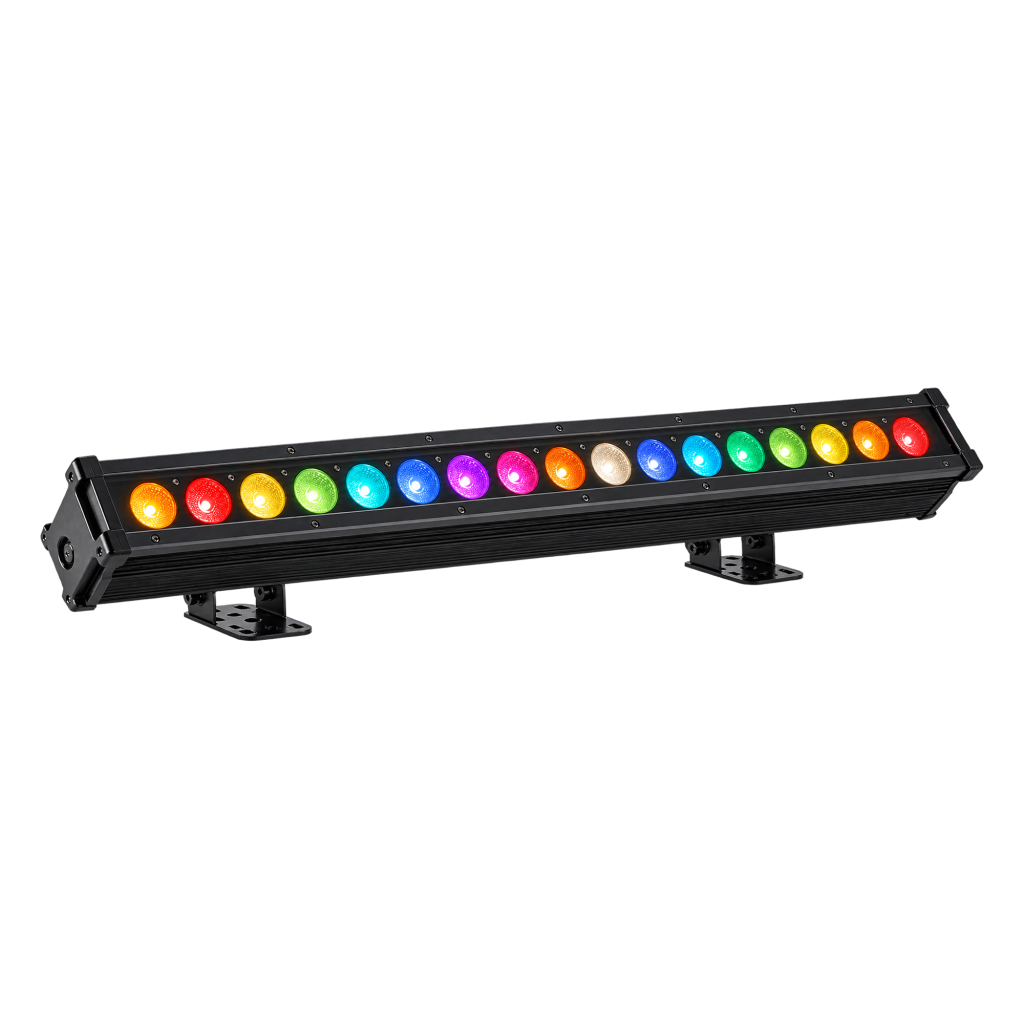

IP65 RGBWAUV LED Pixel Bar Light

Professional IP65 LED pixel bar light featuring 18×15W RGBWAUV 6-in-1 LEDs, 25°/45° beam angle options and multiple DMX channel modes for outdoor concerts and stage applications.
18×15WLED System
RGBWAUVSix-Color Mixing
25° / 45°Beam Angle Options
Inquiry Now →

Specifications

SPECIFICATION
Input VoltageAC100–240V, 50/60Hz
Power Consumption250W
Light Source18×15W RGBWAUV 6-in-1 LEDs
Color MixingRGBWAUV (Red / Green / Blue / White / Amber / UV)
Beam Angle25° / 45° Options
CONTROL
DMX Channels6 / 11 / 108 / 119 CH
Control ModesDMX512 / Auto / Master-Slave / Music
DisplayLED Display
CONSTRUCTION
DMX ConnectionWaterproof 3-Pin XLR In / Out
Power ConnectionWaterproof Power Cable In / Out
Protection RatingIP65
PHYSICAL
Packing Size1040 × 120 × 140 mm
Gross Weight6.5 kg

Product Overview

EL-LED BAR1861 IP Pixel is a professional IP65 RGBWAUV LED pixel bar fixture designed for concerts, music festivals, touring and outdoor stage applications. It features 18×15W RGBWAUV 6-in-1 LEDs with red, green, blue, white, amber and ultraviolet color mixing. The fixture offers 25° and 45° beam angle options and supports 6, 11, 108 and 119-channel DMX configurations. It provides DMX512, Auto, Master-Slave and Music operating modes, with waterproof 3-pin XLR connections and power cabling for professional stage environments.

Product Applications

Concerts, Music Festivals, Touring, Outdoor Events, Stage Productions, Architectural Lighting

Technical Highlights

18×15W RGBWAUV LEDs
6-in-1 Color Mixing
25° / 45° Beam Options
6 / 11 / 108 / 119 DMX Channels
Advanced Pixel DMX Modes
IP65 Outdoor Protection
Waterproof 3-Pin XLR
DMX512 / Auto / Master-Slave / Music

Frequently Asked Questions

Is the EL-LED BAR1861 IP Pixel suitable for outdoor use?
Yes. It has an IP65 protection rating and waterproof signal and power connections for professional outdoor stage applications.
What light source does the EL-LED BAR1861 IP Pixel use?
It uses 18×15W RGBWAUV 6-in-1 LEDs, providing red, green, blue, white, amber and ultraviolet color mixing.
What beam angles are available?
The fixture offers 25° and 45° beam angle options for different lighting applications.
Does the EL-LED BAR1861 IP Pixel support pixel control?
The fixture offers 108-channel and 119-channel DMX modes for advanced pixel-oriented programming.
What control modes does the EL-LED BAR1861 IP Pixel support?
It supports DMX512, Auto, Master-Slave and Music operating modes.
