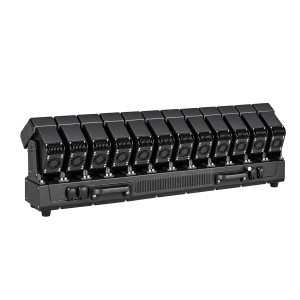

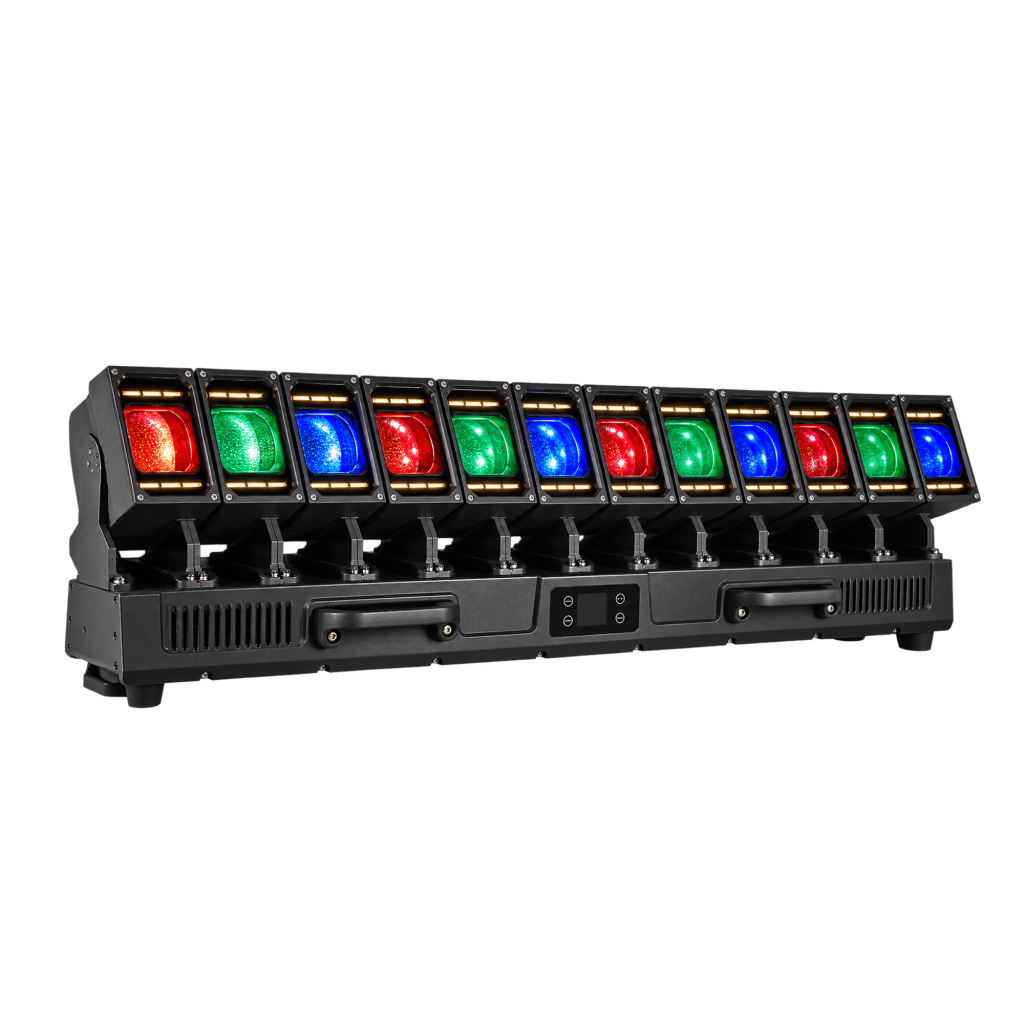

LED Moving Head Pixel Zoom Bar Light
LED Bars

EL-LED ZB1260 IP

LED Moving Head Pixel Zoom Bar Light

Professional LED moving head pixel zoom bar featuring 12×60W Osram RGBW LEDs, 432 warm white and gold LEDs, 3°–45° zoom and individual pixel control for indoor stage applications.
12×60WOsram RGBW LED System
432×1WWarm White & Gold LEDs
3°–45°Zoom Range
Inquiry Now →

Specifications

SPECIFICATION
Input VoltageAC100–240V, 50/60Hz
Power Consumption850W
Main Light Source12×60W Osram RGBW 4-in-1 LEDs
Auxiliary Light Source432×1W Warm White & Gold 2-in-1 LEDs
Total LED Count444
Color MixingRGBW
Zoom Angle3°–45°
Dimmer0–100% Linear Dimming
Pixel ControlIndividual Head and LED Control
MOVEMENT
Moving Angle215°
CONTROL
DMX Channels26 / 59 / 128 / 182 / 314 / 329 CH
Control ModesDMX512 / Auto / Master-Slave / Music
DisplayLCD Display
CONSTRUCTION
DMX Connection3-Pin & 5-Pin XLR In / Out
Power ConnectionPowerCON In / Out
Protection RatingIP20
PHYSICAL
Packing Size1000 × 140 × 305 mm
Gross Weight26 kg

Product Overview

EL-LED ZB1260 IP is a professional LED moving head pixel zoom bar designed for concerts, theaters, live shows and indoor stage productions. It features 12×60W Osram RGBW 4-in-1 LEDs and 432×1W warm white and gold 2-in-1 LEDs. The fixture provides a 3°–45° zoom range, 215° movement and individual control of each head and LED for dynamic pixel effects. It supports 0–100% linear dimming, six DMX channel configurations and DMX512, Auto, Master-Slave and Music operating modes. The fixture has an IP20 protection rating for indoor use.

Product Applications

Concerts, Live Shows, Theaters, Indoor Festivals, Stage Productions, Rental Events

Technical Highlights

12×60W Osram RGBW LEDs
432×1W Warm White & Gold LEDs
3°–45° Zoom Range
215° Motorized Movement
Individual Pixel Control
0–100% Linear Dimming
26 / 59 / 128 / 182 / 314 / 329 DMX Channels
DMX512 / Auto / Master-Slave / Music
IP20 Indoor Protection

Frequently Asked Questions

What light sources does the EL-LED ZB1260 IP use?
It combines 12×60W Osram RGBW 4-in-1 LEDs with 432×1W warm white and gold 2-in-1 LEDs.
What is the zoom range of the EL-LED ZB1260 IP?
The fixture offers a 3°–45° zoom range for narrow beam and wider wash effects.
Does the EL-LED ZB1260 IP support individual pixel control?
Yes. Each head and LED can be controlled individually for dynamic pixel effects and lighting sequences.
What movement range does the EL-LED ZB1260 IP provide?
The fixture provides a specified moving angle of 215°.
Is the EL-LED ZB1260 IP suitable for outdoor use?
The fixture has an IP20 protection rating and is intended for indoor applications. It is not rated for direct exposure to rain or outdoor weather.
