350W IP55 Moving Head Beam Light
Moving Head Lights

EL-BEAM350 IP

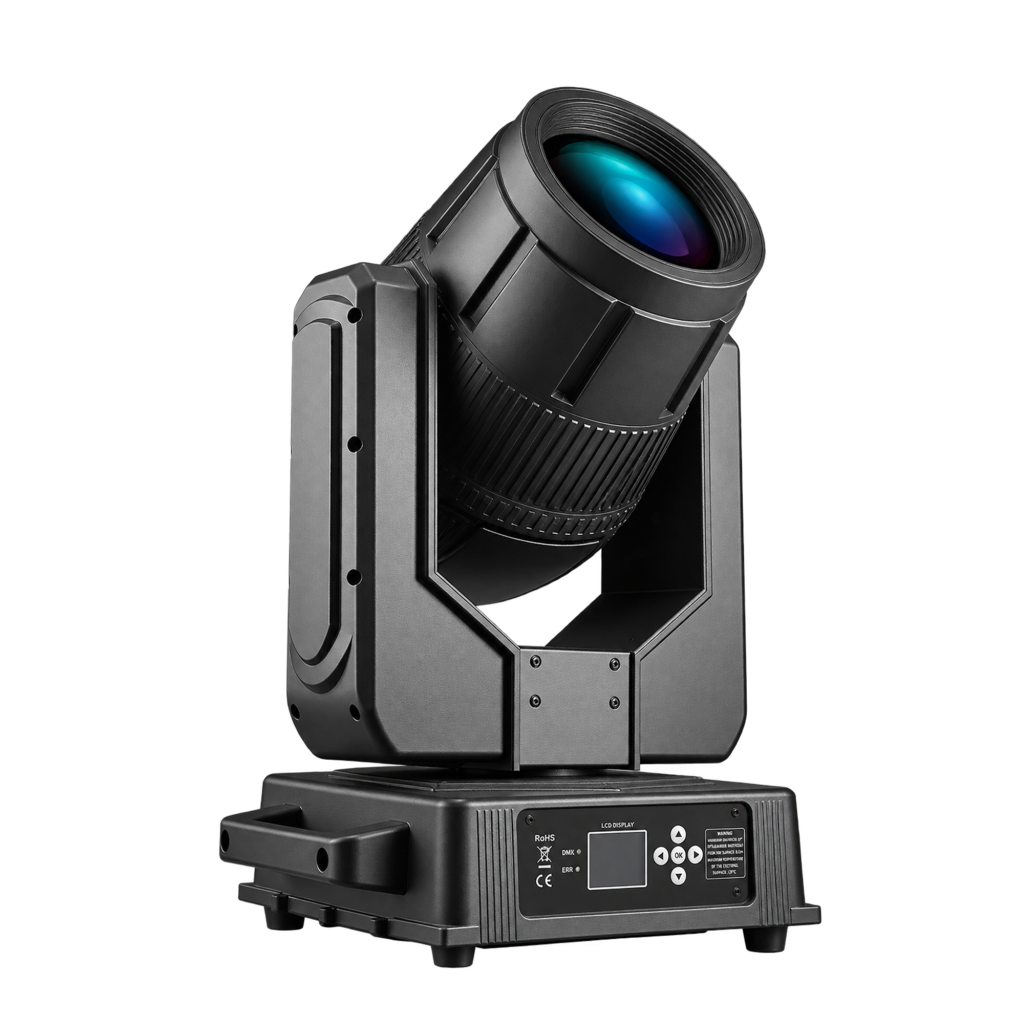

350W IP55 Moving Head Beam Light

Professional IP55 moving head beam light featuring a 350W light source, 1.9°–3° beam angle, dual prism effects, electronic focus and DMX512 control for concerts, touring and outdoor stage applications.
350WLight Source
1.9°–3°Beam Angle
8 + 8×16Dual Prism Effects
Inquiry Now →

Specifications

POWER & LIGHT SOURCE
Light Source350W
Total Power600W
Color Temperature8000K
OPTICAL SYSTEM
Optical LensJingsai Optical Lens
Beam Angle1.9°–3°
Color Wheel14 Colors + White
Color EffectsBidirectional Variable-Speed Rainbow
Rotating Gobo Wheel17 Gobos + Open
Frost1 Frost Filter
Prism8-Facet + 8+16-Facet Prisms
Prism RotationBidirectional Variable-Speed Rotation
FocusElectronic Focus
Dimmer0–100%
Strobe1–13Hz
MOVEMENT & CONTROL
Pan540°
Tilt270°
Control ProtocolDMX512
DisplayLCD with Touch-Sensitive Buttons
CONSTRUCTION
Protection RatingIP55
HousingPV+ Fiber Plastic Outer Shell
MountingHanging Supported
PHYSICAL
Product Dimensions360 × 310 × 600 mm
Net Weight20 kg

Product Overview

EL-BEAM350 IP is a professional IP55 moving head beam light designed for concerts, festivals, touring and stage productions. It features a 350W light source, an 8000K color temperature and a narrow 1.9°–3° beam angle with Jingsai optics. The fixture includes 14 colors plus white, 17 rotating gobos plus open, a frost filter, 8-facet and 8+16-facet prism effects, electronic focus and DMX512 control. With 540° pan, 270° tilt and a 600W total power rating, it provides flexible beam effects for professional entertainment lighting.

Product Applications

Concerts, Music Festivals, Touring, Outdoor Events, Live Shows, Stage Productions

Technical Highlights

350W Light Source
8000K Color Temperature
1.9°–3° Narrow Beam
IP55 Protection
Jingsai Optical Lens
14 Colors + White
17 Gobos + Open
8-Facet + 8+16-Facet Prisms
Electronic Focus
DMX512 Control

Frequently Asked Questions

Is the EL-BEAM350 IP suitable for outdoor events?
The fixture has an IP55 protection rating, providing protection against dust and water jets for appropriately installed outdoor stage applications.
What light source does the EL-BEAM350 IP use?
It uses a 350W light source with an 8000K color temperature and a total fixture power rating of 600W.
What is the beam angle of the EL-BEAM350 IP?
The fixture provides a narrow beam angle of 1.9°–3° for concentrated aerial lighting effects.
What prism effects does the EL-BEAM350 IP provide?
It features 8-facet and 8+16-facet prism configurations with bidirectional variable-speed rotation.
Does the EL-BEAM350 IP support electronic focusing?
Yes. It supports electronic focusing, along with 0–100% dimming and 1–13Hz strobe effects.
