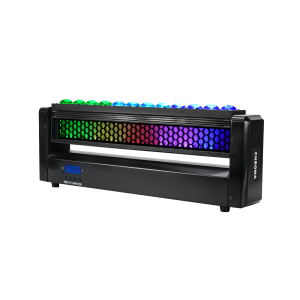

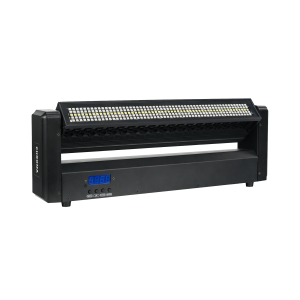

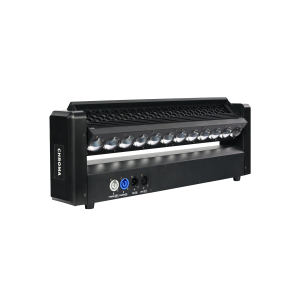

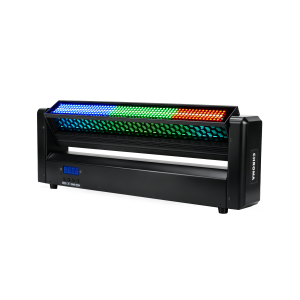

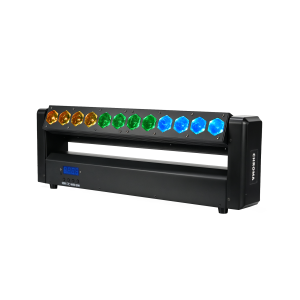

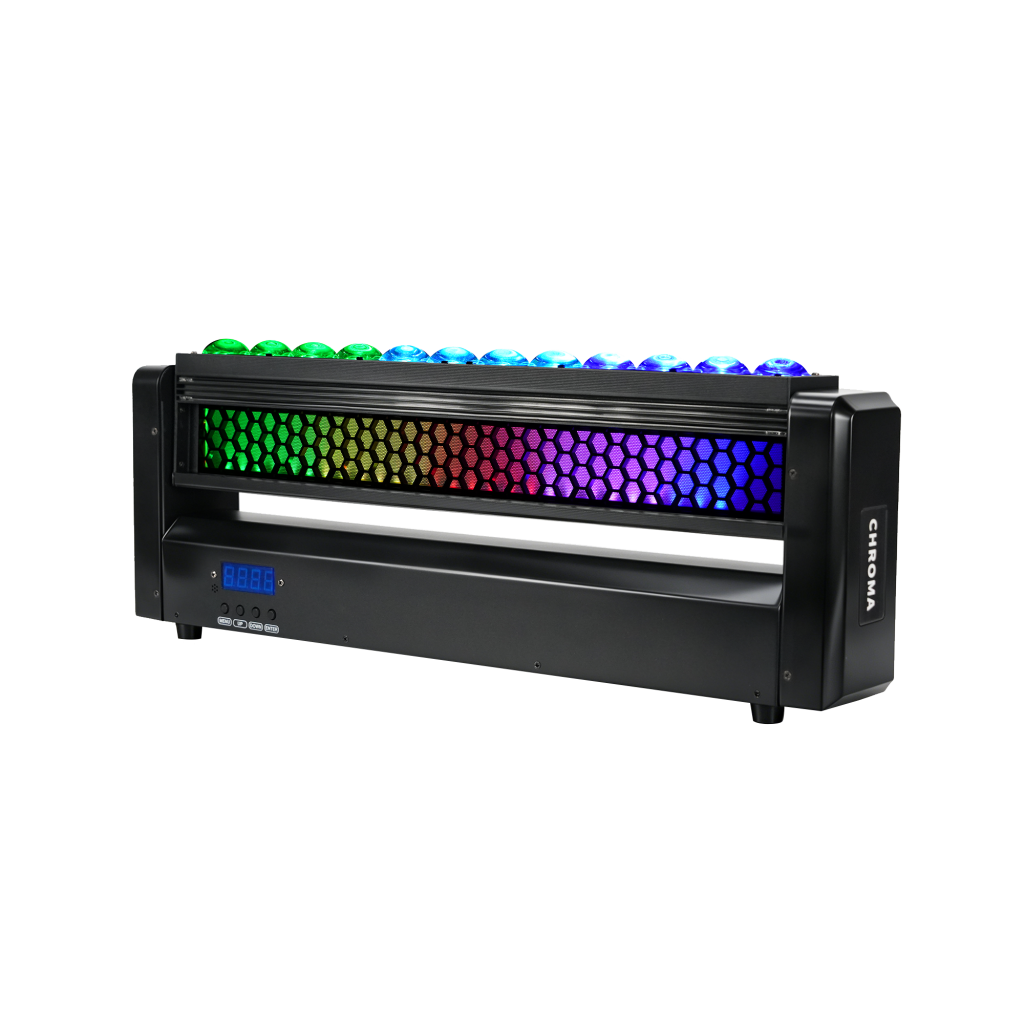

LED Rotating Pixel Effect Bar Light
| SPECIFICATION | |
|---|---|
| Input Voltage | AC100–230V |
| Maximum Power Consumption | 200W |
| Main Light Source | 12×8W 5050 RGBW 4-in-1 LEDs |
| RGB Effect Light Source | 224×0.2W 5050 RGB 3-in-1 LEDs |
| White Light Source | 56×1W 5054 White LEDs |
| LED Strip Source | 27×0.2W LED Strip Elements |
| LED Lifetime | 50,000 Hours |
| Strobe Frequency | 0–20Hz, Adjustable |
| MOVEMENT | |
| Motor Rotation Angle | 360° |
| CONTROL | |
| DMX Channels | 17 / 30 / 87 CH |
| Control Modes | DMX512 / Sound Active / Auto / Master-Slave |
EL-LED Magicbar12 R is a professional LED rotating effect bar designed for concerts, nightclubs, DJ performances and creative stage productions. It combines 12×8W RGBW 4-in-1 LEDs with 224×0.2W RGB LEDs, 56×1W white LEDs and 27×0.2W LED strip elements to create layered color and lighting effects.
The fixture features a 360° motor rotation angle, adjustable 0–20Hz strobe and three DMX channel configurations for flexible lighting programming. With DMX512, Sound Active, Auto and Master-Slave operating modes, the EL-LED Magicbar12 R provides versatile control for professional entertainment lighting applications.
EL-LED Magicbar12 R is a professional rotating LED effect bar designed for concerts, nightclubs, DJ events and stage productions. It combines 12×8W RGBW 4-in-1 LEDs, 224×0.2W RGB 3-in-1 LEDs, 56×1W white LEDs and 27×0.2W LED strip elements. The fixture features 360° motor rotation, adjustable 0–20Hz strobe effects, 17/30/87-channel DMX control and multiple operating modes including DMX512, Auto, Master-Slave and Sound Active.
Concerts, Nightclubs, DJ Events, Live Shows, Music Festivals, Stage Productions
12×8W RGBW 4-in-1 LEDs
224×0.2W RGB Effect LEDs
56×1W White LEDs
LED Strip Effects
360° Motor Rotation
0–20Hz Adjustable Strobe
17 / 30 / 87 DMX Channels
50,000-Hour LED Lifetime
