Professional rotating LED multi-effect bar featuring 36×4W 4-in-1 LEDs, 256 RGB effect LEDs, 96 white LEDs and 360° motor rotation, with adjustable strobe and DMX512 control.

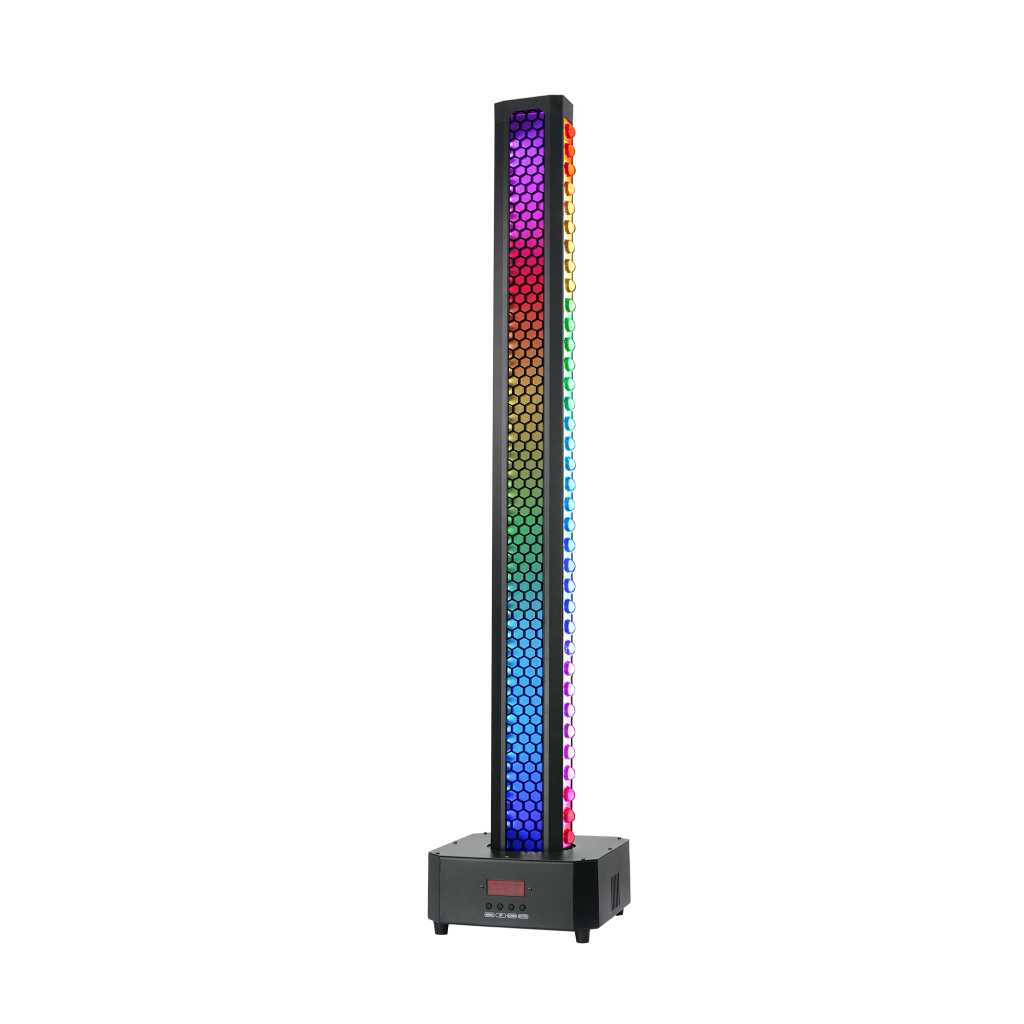

EL-LED Magicbar36 R is a professional rotating LED multi-effect bar designed for concerts, nightclubs, DJ events and creative stage productions. It combines 36×4W 4-in-1 LEDs with 256×0.5W RGB 3-in-1 LEDs and 96×0.5W white LEDs to create layered color and lighting effects.
The fixture features 360° motor rotation, providing dynamic movement and flexible effect positioning. It supports adjustable 0–20Hz strobe effects and 17/32-channel DMX configurations for professional lighting programming.
With DMX512, Sound Active, Auto and Master-Slave operating modes, the EL-LED Magicbar36 R offers versatile control for entertainment lighting applications. Its LED light sources have a specified lifetime of 50,000 hours.
Dimensions
Dimension drawings are not available for this product yet.
Downloads
No files are available for this product yet.
Product Overview
EL-LED Magicbar36 R is a professional rotating LED multi-effect bar fixture designed for concerts, nightclubs, DJ events and stage productions. It combines 36×4W 4-in-1 LEDs, 256×0.5W RGB 3-in-1 LEDs and 96×0.5W white LEDs, providing a total of 388 LEDs. The fixture features 360° motor rotation, adjustable 0–20Hz strobe effects, 17/32-channel DMX control and multiple operating modes including DMX512, Sound Active, Auto and Master-Slave. Its LED light sources have a specified lifetime of 50,000 hours.
Product Applications
EL-LED Magicbar36 R is a professional rotating LED multi-effect bar fixture designed for concerts, nightclubs, DJ events and stage productions. It combines 36×4W 4-in-1 LEDs, 256×0.5W RGB 3-in-1 LEDs and 96×0.5W white LEDs, providing a total of 388 LEDs. The fixture features 360° motor rotation, adjustable 0–20Hz strobe effects, 17/32-channel DMX control and multiple operating modes including DMX512, Sound Active, Auto and Master-Slave. Its LED light sources have a specified lifetime of 50,000 hours.
Technical Highlights
36×4W 4-in-1 LEDs
256×0.5W RGB Effect LEDs
96×0.5W White LEDs
388 Total LEDs
360° Motor Rotation
0–20Hz Adjustable Strobe
17 / 32 DMX Channels
DMX512 / Sound Active / Auto / Master-Slave
50,000-Hour LED Lifetime
Frequently Asked Questions
What light sources does the EL-LED Magicbar36 R use?
It combines 36×4W 4-in-1 LEDs, 256×0.5W RGB LEDs and 96×0.5W white LEDs.
Does the EL-LED Magicbar36 R support 360° rotation?
Yes. It features a motorized rotation angle of 360° for dynamic stage lighting effects.
What DMX channel modes does the EL-LED Magicbar36 R support?
It supports 17-channel and 32-channel DMX configurations.
What is the strobe frequency of the EL-LED Magicbar36 R?
The fixture supports adjustable strobe effects from 0–20Hz.
What control modes are available on the EL-LED Magicbar36 R?
It supports DMX512, Sound Active, Auto and Master-Slave operating modes.
