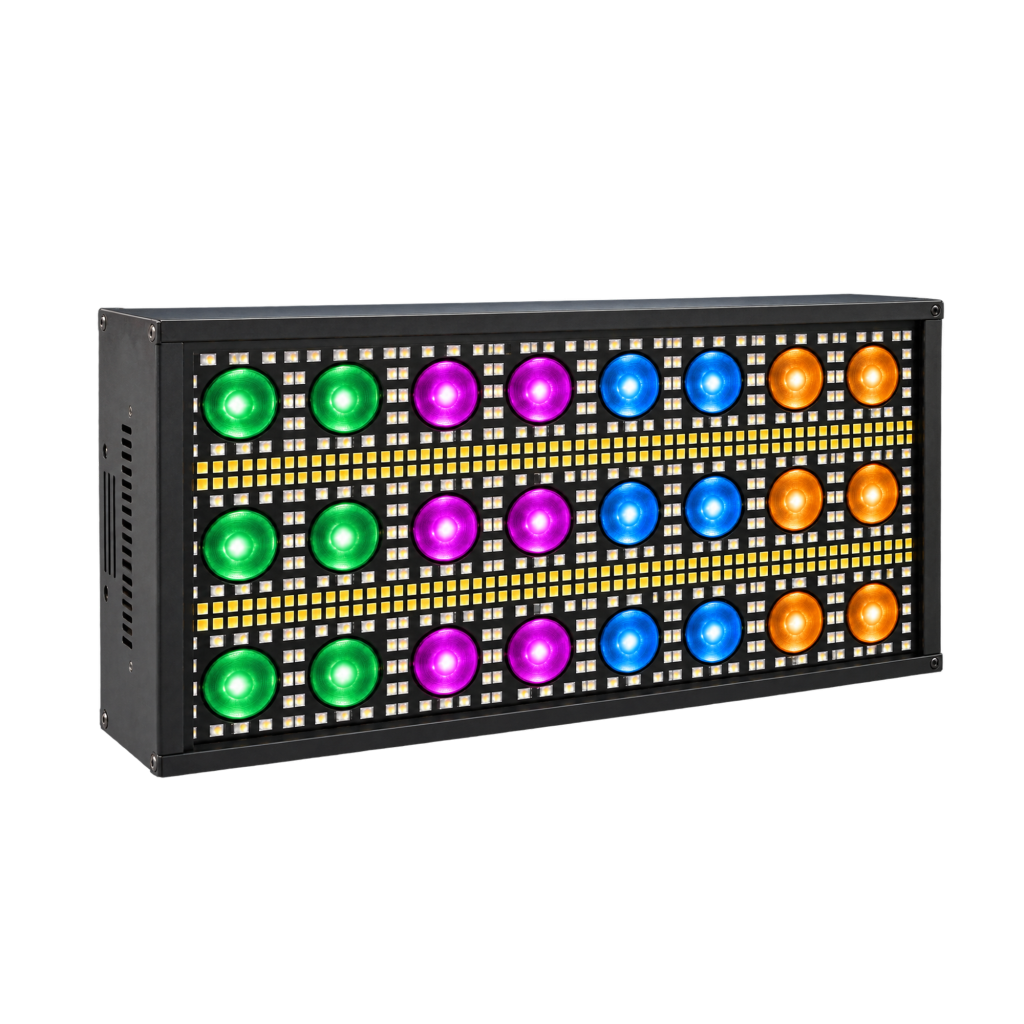

LED Strobe & Pixel Effect Light
| SPECIFICATION | |
|---|---|
| Input Voltage | AC100–240V, 50/60Hz |
| Power Supply | 24V / 260W |
| RGB Light Source | 384×0.3W 5050 RGB LEDs |
| Main White Light Source | 24×5W 3535 White LEDs |
| Auxiliary White Light Source | 256×0.2W 5730 White LEDs |
| Total LEDs | 664 |
| Dimmer | 0–100% Linear Dimming |
| Dimming Resolution | 32-bit |
| Strobe Frequency | 1–30Hz |
| Pixel Control | Individual Point Control |
| CONTROL | |
| DMX Channels | 10 / 112 CH |
| Control Modes | DMX512 / Auto / Master-Slave / Sound Active |
| RDM | Supported |
| CONSTRUCTION | |
| DMX Connection | DMX512 Input / Output |
| Power Connection | Power Input / Output |
| Operating Temperature | -30°C to +50°C |
EL-LED STROBE 24 is a professional LED strobe and pixel effect fixture designed for concerts, music festivals, clubs and stage productions. It combines 384×0.3W RGB LEDs, 24×5W white LEDs and 256×0.2W white LEDs to create dynamic color and strobe effects. The fixture features individual point control, 32-bit linear dimming from 0–100%, and adjustable strobe frequency from 1–30Hz. With DMX512, RDM, Auto, Master-Slave and Sound Active operating modes, it offers flexible control for professional entertainment lighting applications.
EL-LED STROBE 24 is a professional LED strobe and pixel effect fixture for concerts, music festivals, clubs and stage productions. It features 384×0.3W RGB LEDs, 24×5W white LEDs and 256×0.2W white LEDs, with a total of 664 LEDs. The fixture supports individual point control, 32-bit linear dimming, adjustable 1–30Hz strobe and 10/112-channel DMX operation. Control options include DMX512, RDM, Auto, Master-Slave and Sound Active modes.
Concerts, Music Festivals, Nightclubs, Live Shows, Stage Productions, Rental Events
384×0.3W RGB LEDs
24×5W White LEDs
256×0.2W White LEDs
664 Total LEDs
32-Bit Linear Dimming
1–30Hz Strobe
Individual Point Control
10 / 112 DMX Channels
DMX512 / RDM Control
