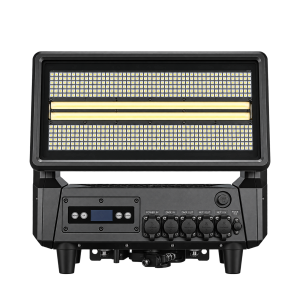

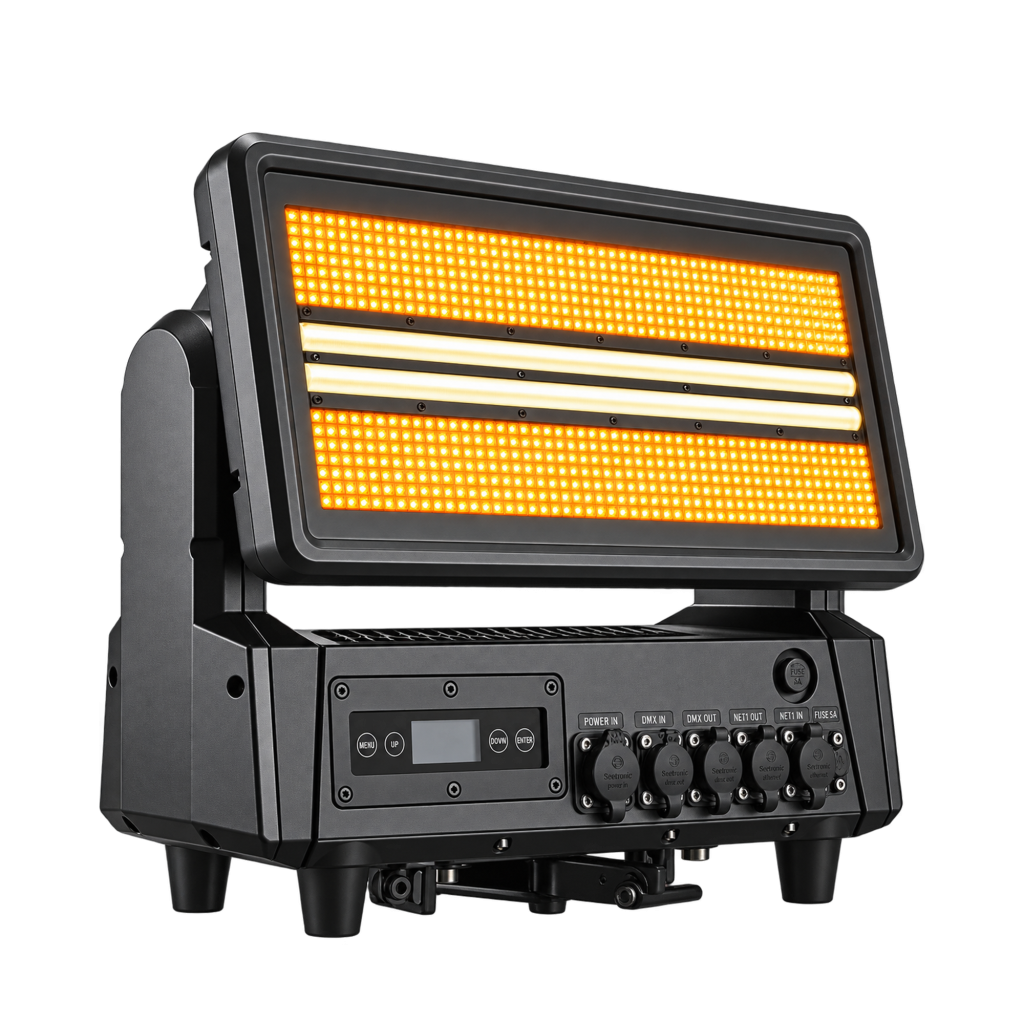

IP65 LED Strobe & Pixel Effect Light
| SPECIFICATION | |
|---|---|
| Input Voltage | AC100–240V, 50/60Hz |
| Power Consumption | 1400W |
| White Light Source | 392×1.5W White LEDs |
| RGB Light Source | 784×1.5W RGB 3-in-1 LEDs |
| Total LEDs | 1176 |
| White Pixel Matrix | 2×14 Groups |
| RGB Pixel Matrix | 2×7 Groups |
| Red Output | 5,480 lm |
| Green Output | 11,760 lm |
| Blue Output | 1,560 lm |
| White Output | 45,000 lm |
| Full Output | 63,880 lm |
| CRI | Ra ≥90 |
| LED Lifetime | 50,000 Hours |
| Beam Angle | 120° |
| Dimmer | 0–100% Linear Dimming |
| CONTROL | |
| DMX Channels | 8 / 11 / 13 / 24 / 30 / 74 / 97 CH |
| Control Modes | DMX512 / Auto / Master-Slave / Music |
| RDM | Bidirectional Communication |
| Display | OLED Touch Display |
| Cooling | Temperature-Controlled Cooling with Overheating Protection |
| CONSTRUCTION | |
| DMX Connection | Seetronic 3-Pin XLR Waterproof In / Out |
| Power Connection | Seetronic Waterproof PowerCON In / Out |
| Art-Net Connection | Seetronic Waterproof Art-Net In / Out |
| Housing | Die-Cast Aluminum |
| Protection Rating | IP65 |
| PHYSICAL | |
| Product Size | 404 × 202 × 350 mm |
| Net Weight | 15 kg |
EL-LED STROBE1200M IP is a high-output professional LED strobe and pixel effect fixture designed for concerts, festivals, touring and outdoor stage productions. It combines 392×1.5W white LEDs with 784×1.5W RGB 3-in-1 LEDs, delivering up to 63,880 lumens at full output. Independent white and RGB pixel groups enable dynamic strobe, color and pixel effects, while the wide 120° beam provides extensive stage coverage. With CRI ≥90, multiple DMX channel modes, RDM communication, Art-Net connectivity and an IP65-rated die-cast aluminum housing, it is designed for demanding professional environments
| Product Size | 404 × 202 × 350 mm |
| Net Weight | 15 kg |
EL-LED STROBE1200M IP is a professional IP65 LED strobe and pixel effect fixture designed for concerts, festivals, touring and outdoor stage productions. It combines 392×1.5W white LEDs with 784×1.5W RGB 3-in-1 LEDs and delivers up to 63,880 lumens at full output. The fixture provides independently grouped white and RGB pixel control, a wide 120° beam angle, CRI ≥90, 0–100% linear dimming, multiple DMX channel modes, RDM communication and Art-Net connectivity.
Concerts, Music Festivals, Touring, Outdoor Events, Live Shows, Stage Productions
392×1.5W White LEDs
784×1.5W RGB LEDs
63,880 lm Full Output
CRI ≥90
120° Beam Angle
White 2×14 Pixel Groups
RGB 2×7 Pixel Groups
IP65 Protection
RDM Communication
Art-Net Connectivity
