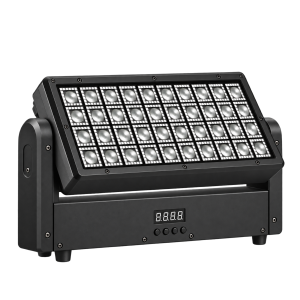

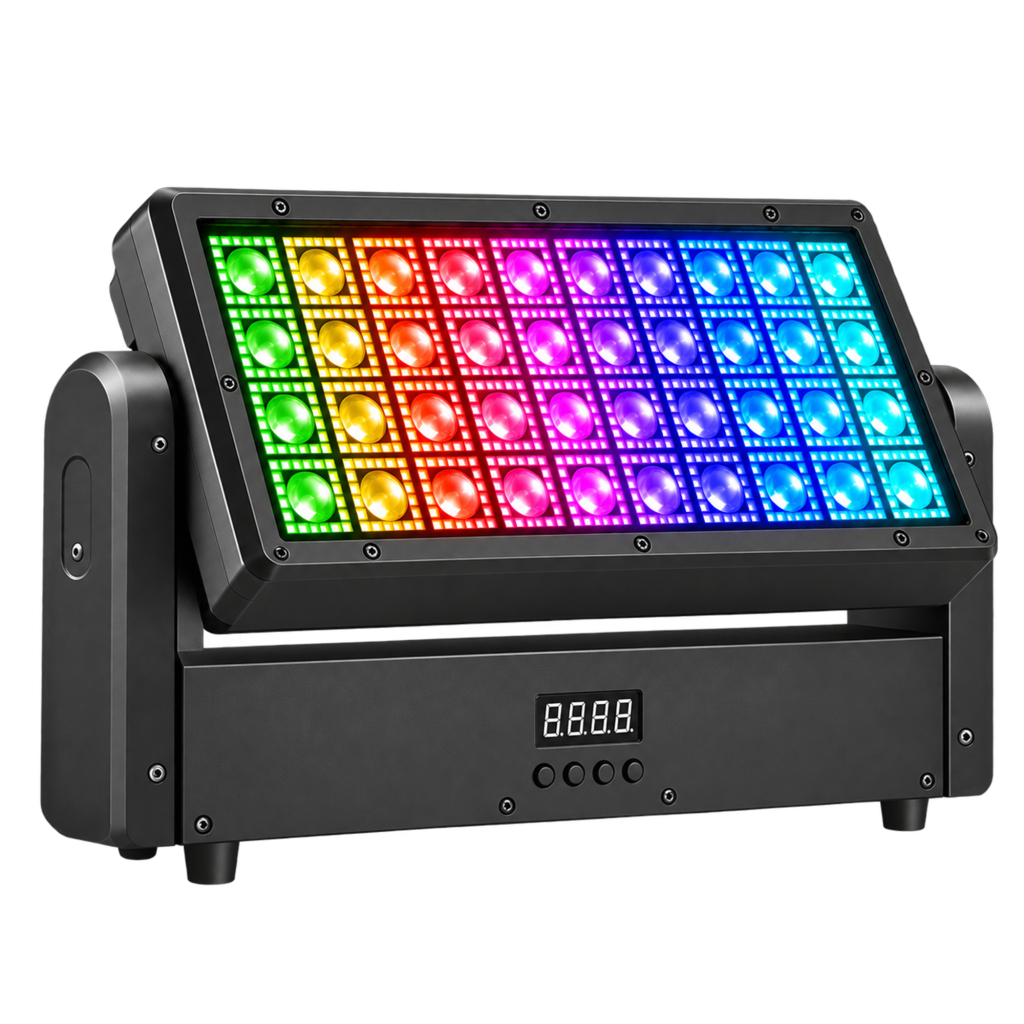

LED Strobe & Pixel Effect Light
| SPECIFICATION | |
|---|---|
| Input Voltage | AC100–240V, 50/60Hz |
| Power Consumption | 260W |
| Light Source | 36×3W High-Brightness LEDs + 648×5050 RGB 3-in-1 LEDs |
| LED Lifetime | 50,000 Hours |
| Color Mixing | RGBW Color Mixing System |
| Color Range | Up to 16 Million Colors |
| Dimmer | 0–100% Stepless Linear Electronic Dimming |
| Dimming Resolution | Up to 65,536 Levels |
| Strobe | 1–25Hz High-Speed Electronic Strobe |
| Strobe Effects | Random Strobe and Pulse Effects |
| CONTROL | |
| DMX Channels | 16 / 21 CH |
| Control Protocol | DMX512 |
| Control Modes | DMX512 / Auto / Master-Slave / Sound Active |
| DMX Addressing | Digital DMX Address Setting |
EL-LED STROBE36 M is a professional LED strobe and pixel effect fixture designed for concerts, clubs, live shows and stage productions. It combines 36×3W high-brightness LEDs with 648 RGB 3-in-1 LEDs to deliver powerful strobe output and rich color effects. The fixture supports RGBW color mixing, smooth 0–100% linear dimming with up to 16-bit resolution, and high-speed electronic strobe effects from 1–25Hz. Multiple operating modes including DMX512, Auto, Master-Slave and Sound Active provide flexible control for professional entertainment applications.
EL-LED STROBE36 M is a professional LED strobe and pixel effect fixture designed for concerts, clubs, live shows and stage productions. It combines 36×3W high-brightness LEDs with 648×5050 RGB 3-in-1 LEDs and supports RGBW color mixing with up to 16 million color combinations. The fixture provides 0–100% linear electronic dimming with up to 65,536 levels of resolution, 1–25Hz electronic strobe, random and pulse effects, and 16/21-channel DMX control.
Concerts, Music Festivals, Clubs, Live Shows, Stage Productions, Rental Events
36×3W High-Brightness LEDs
648×5050 RGB 3-in-1 LEDs
RGBW Color Mixing
Up to 16 Million Colors
1–25Hz High-Speed Strobe
16-Bit Dimming
16 / 21 DMX Channels
DMX512 / Auto / Master-Slave / Sound Active
